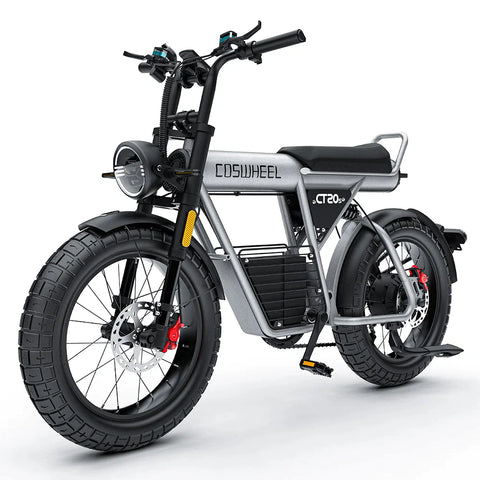

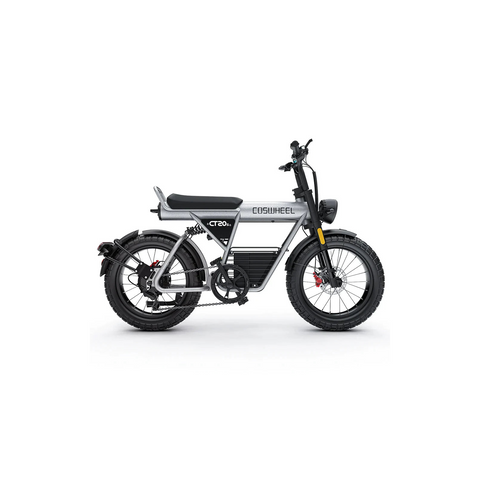

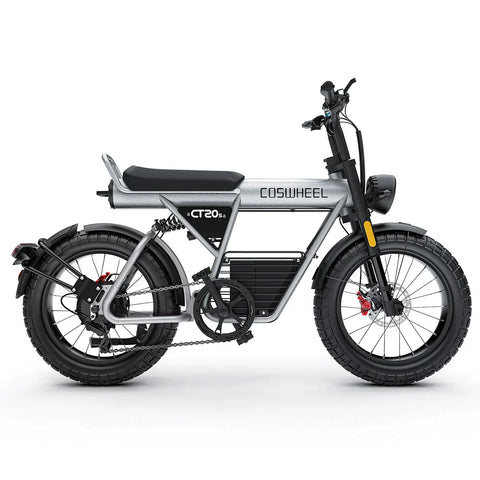

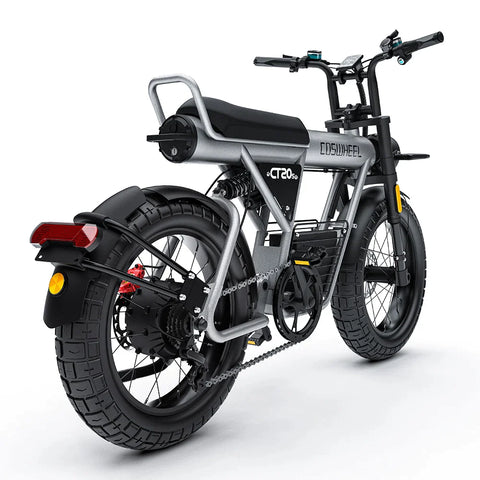

COSWHEEL CT20S Strong Power Electric Bike

This ebike has passed European CE, EN15194 and American UL2849 certifications, and is equipped with 5-speed electronic transmission, pedal chain Shimano 7-level manual transmission, and can be freely set according to your local regulations.

WHY CHOOSE COSWHEEL?

Super73 killer, with the same configuration, better quality and price.

The whole bike is made of aluminum alloy, which is solid, reliable, elegant and at the same time beats other ebikes with iron frames.

All products are independently developed and have appearance patents. With a coswheel ebike, you are unique.

CHARACTERISTICS OF CT20S

60V 1500W super power brushless motor, peak output 2000W.

120N.m super torque, easy to climb up a 35-degree slope.

Adjustable rear shock, 350 lbs, high quality ride.

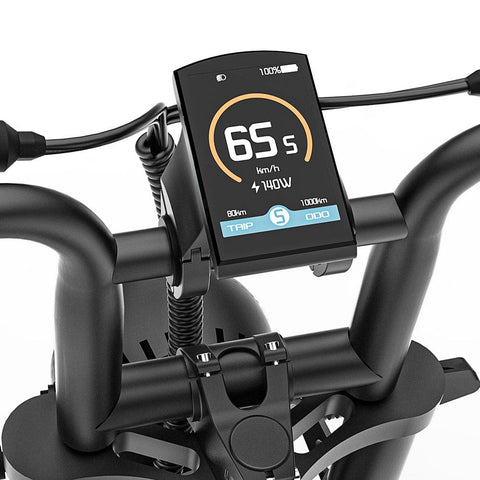

Equipped with an APP matching with IOS, it is easy to locate the position of CT20S

PACKING LIST

Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1

Specification

Color	silver frame, black wheel
Battery	48V 25/35AH and 60V 27.5AH
Battery Energy	1200/1680Wh and 1650Wh
Frame Material	full custom hydroformed triple-butted 6061-T6 aluminium alloy
Motor	Peak 2000W (rated 1500W) brushless high-speed motor
Max Speed	65km/h (40mph)
Gearbox	Shimano 7-speed drivetrain
Tire Size	Chaoyang black all terrain tire 20" × 5.0"/A820/60TPI
Range Per Charge	80-100km, 110-120km, 90-100km
Voltage	48V/60V
Foldable	No
Charge time	7.0-12.0H

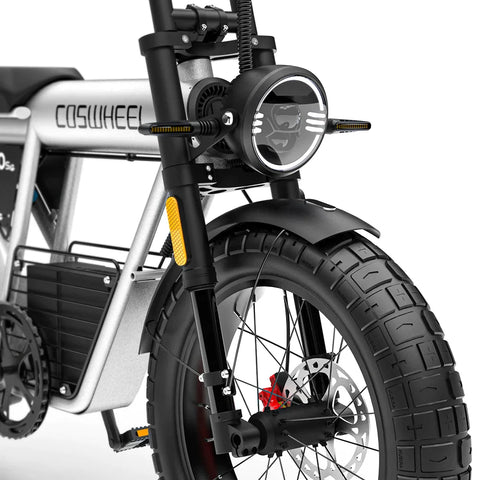

Front Fork	20"*5.0" all-aluminum double-shoulder snow shock-absorbing inverted fork

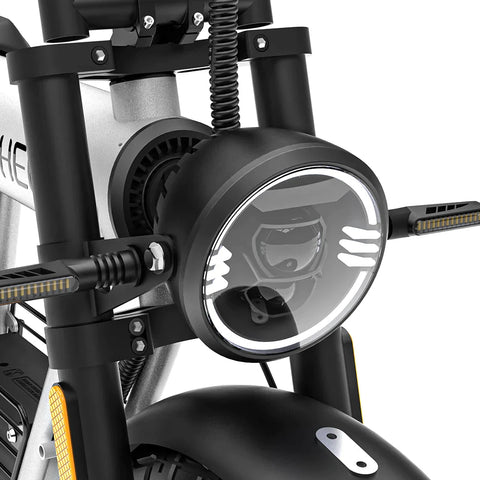

Headlight	snow car headlights, 4 core wires, fast-demolition waterproof line

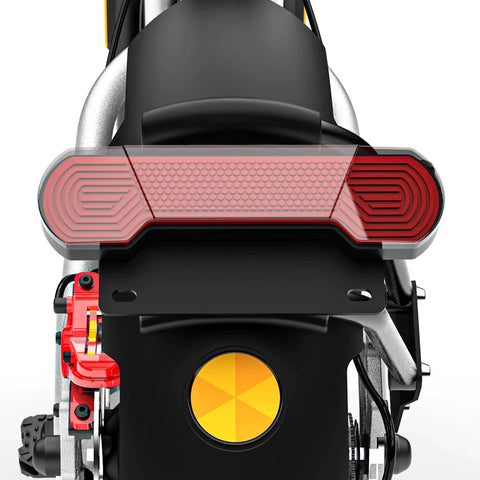

Turn Signal	front and rear LED turn signals
Charger	add defense backflow function, voltage 110V-240V
Controller	maximum load 35AH current

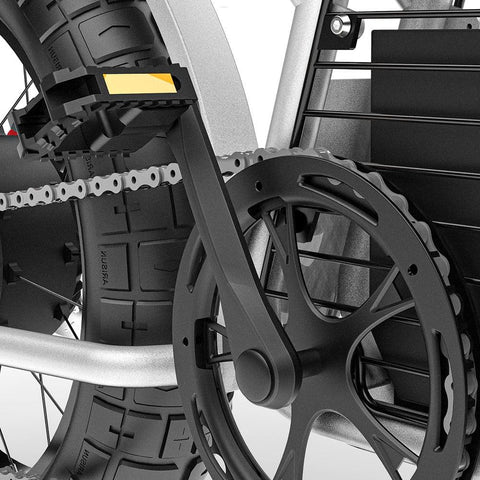

Crank	1/2 "3/32"46T 7-speed ED tooth plate
Pedal	aluminum alloy pedal, with reflect-light, axis 9/16 x2
Split Handlebar	Sand black 31.8*660
Chain	7-speed anti-rust, 1/2" * 3/32"
Brake Disc	180mm diameter, 3mm thick ventilated brake disc

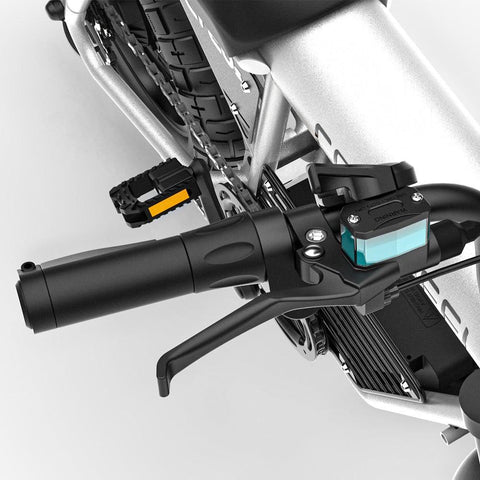

Brake System	motorcycle brake with oil cylinder

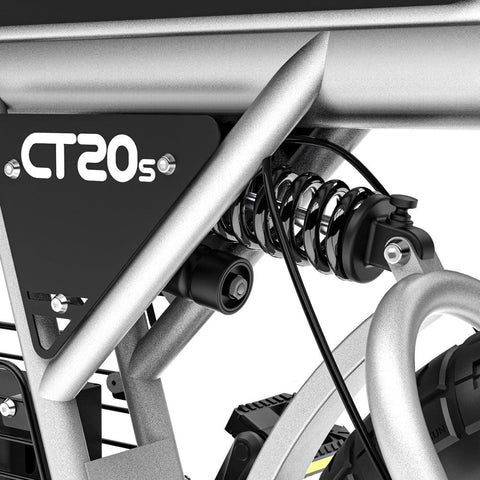

Shock	djustable damping, hole center 230mm, 350 pounds, black
Suspension Travel	front 120mm, rear 180mm
Suspension	front and rear suspension
Torque	120N.m
Weight	≥45KG
Max load	200KG (safty load≤150KG)
Size	18060115cm
Packing Size	1463986cm
Rider Height	suitable for 5.1-6.5(ft)
