T20 EBIKE LEGALITY

This ebike has passed European CE, EN15194 and American UL2849 certifications, and is equipped with 5-speed electronic transmission, pedal chain Shimano 7-level manual transmission, and can be freely set according to your local regulations.

WHY CHOOSE COSWHEEL?

Super73 killer, with the same configuration, better quality and price.

The whole bike is made of aluminum alloy, which is solid, reliable, elegant and at the same time beats other ebikes with iron frames.

All products are independently developed and have appearance patents. With a coswheel ebike, you are unique.

ADVANTAGES OF T20

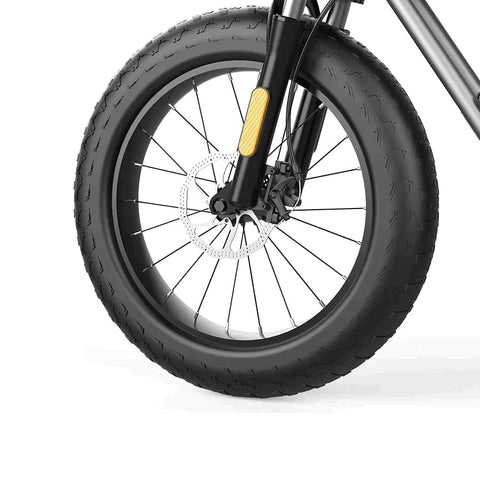

20" * 4" all-terrain fat tire, allow you to easily control various scenarios.

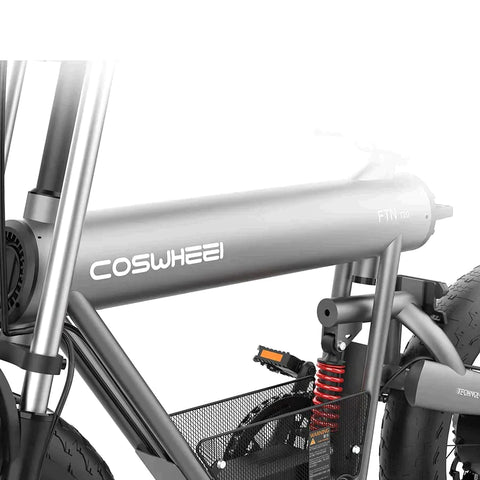

The wall of the middle battery tube is 3.5MM thick, not easy to deform, ensuring safety.

Motor peak 750W (rated 500W), torque 50N.m, make you full of power.

PACKING LIST

Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1

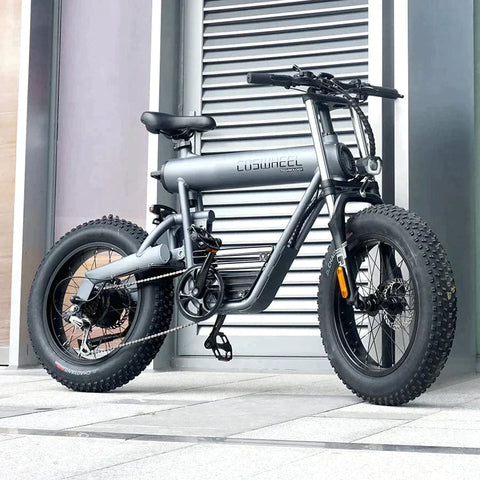

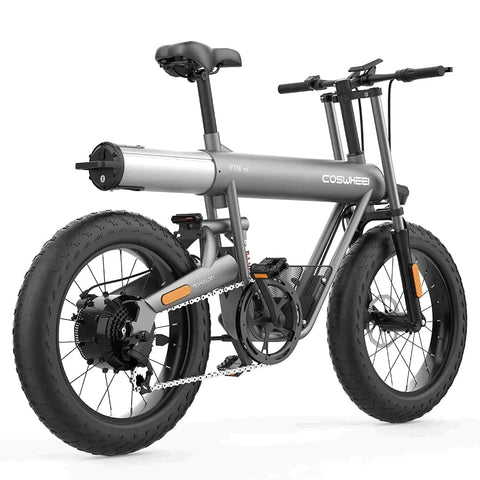

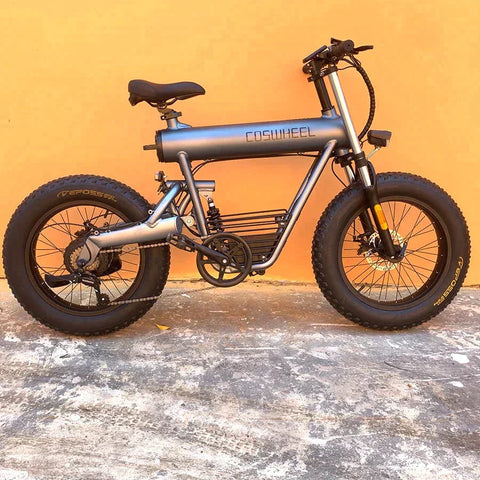

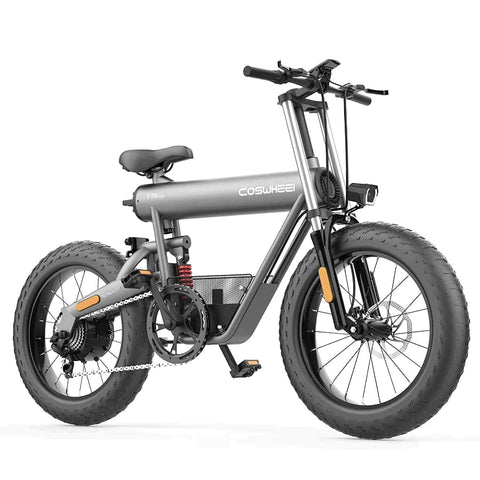

Coswheel T20 E-bike 20Ah Battery 48V 500W Motor 50-70 Range 45kmh Max Speed Off-road Bike Space Grey

SPECIFICATION

Color	gray frame, black wheel
Battery	480/720/960Wh (10/15/20Ah)
Frame Material	full custom hydroformed triple-butted 6061-T6 aluminium alloy
Motor	500W high-speed motor, peak output 750W
Max Speed	45km/h (28mph)
Gearbox	Shimano 7-speed drivetrain
Tire Size	Chaoyang Sunny road tire 20"*4" IA-5189
Range Per Charge	30-40, 50-60, 70-80km
Voltage	48V
Foldable	No
Charge time	3.5-8.0H
Front Fork	20" aluminum shoulder shock-absorbing fork, 171mm, Open 135mm
Headlight	small size lamp, 4 core wires, fast-demolition waterproof line
Taillight	custom taillights 48V, line length 1300mm single fast disassembly, SM-6A pin terminal
Charger	add defense backflow function, voltage 110V-240V, Line length 1.5m
Controller	maximum load 25AH current
Crank	1/2 "3/32"46T 7-speed ED tooth plate
Pedal	aluminum alloy pedal, with reflect-light, axis 9/16 x2
Bent Handlebar	Iron, curved handle, matte black 620LΦ31.8H: 30 high
Chain	1/2"*3/32" 7-speed anti-rust
Brake	160mm wide and 3mm thick ventilated discs
Suspension Travel	180mm
Torque	50N.m
Weight	≥40KG
Brake System	front and rear disc brakes
Max load	150KG (safty load≤120KG)
Size	18060115cm
Packing Size	1463986cm
Rider Height	suitable for 5.3-6.8(ft)

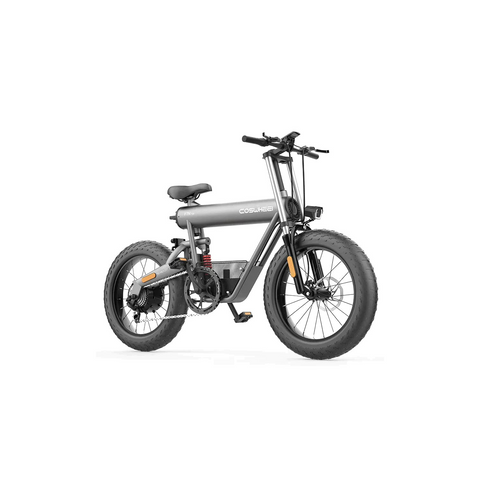

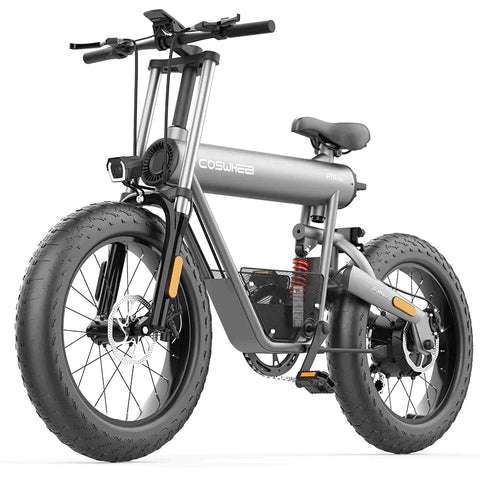

Coswheel T20 All Terrain Cargo Electric Bike
