T20R EBIKE LEGALITY

This ebike has passed European CE, EN15194 and American UL2849 certifications, and is equipped with 5-speed electronic transmission, pedal chain Shimano 7-level manual transmission, and can be freely set according to your local regulations.

WHY CHOOSE COSWHEEL?

Super73 killer, with the same configuration, better quality and price.

The whole bike is made of aluminum alloy, which is solid, reliable, elegant and at the same time beats other ebikes with iron frames.

All products are independently developed and have appearance patents. With a coswheel ebike, you are unique.

ADVANTAGES OF T20R

Leather handle and leather seat, make your ride more comfortable.

New upgrade from 750W to 1000W high-speed motor, peak output 1500W.

T20 upgrade model, the headlights are upgraded to round retro headlights, which are more illuminated.

High-quality front and rear disc brakes, 160MM brake disc, safer and more assured.

PACKING LIST

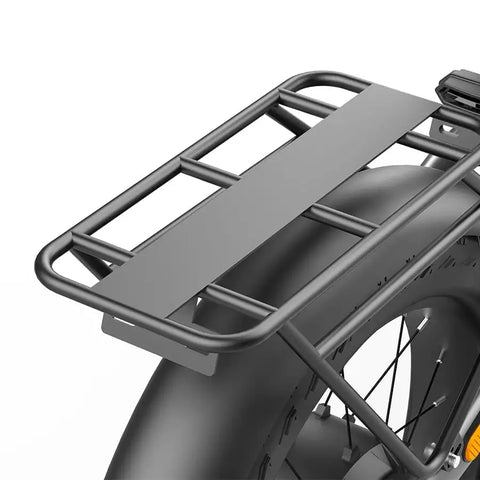

Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1

SPECIFICATION

Color	gray frame, black wheel
Battery	960Wh (20Ah)
Frame Material	full custom hydroformed triple-butted 6061-T6 aluminium alloy
Motor	peak 1500W (rated 1000W) brushless high-speed motor
Max Speed	45km/h (28mph)
Gearbox	Shimano 7-speed drivetrain
Tire Size	Chaoyang Sunny road tire 20"*4" IA-5189
Range Per Charge	70-80km
Voltage	48V
Foldable	No
Charge time	3.5-8.0H
Front Fork	20" aluminum shoulder shock-absorbing fork, 171mm, Open 135mm
Headlight	snow car headlights, 4 core wires, fast-demolition waterproof line
Taillight	custom taillights 48V, line length 1300mm single fast disassembly, SM-6A pin terminal
Charger	add defense backflow function, voltage 110V-240V, Line length 1.5m
Controller	maximum load 28AH current
Crank	1/2 "3/32"46T 7-speed ED tooth plate
Pedal	aluminum alloy pedal, with reflect-light, axis 9/16 x2
Bent Handlebar	Iron, curved handle, matte black 620LΦ31.8H: 30 high
Chain	1/2"*3/32" 7-speed anti-rust
Brake	160mm wide and 3mm thick ventilated discs
Suspension Travel	180mm
Torque	80N.m
Weight	≥40KG
Brake System	front and rear disc brakes
Max load	150KG (safty load≤120KG)
Size	18060115cm
Packing Size	1463986cm
Rider Height	suitable for 5.3-6.8(ft)

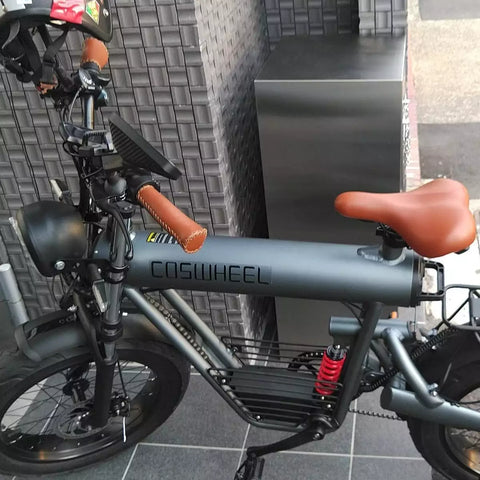

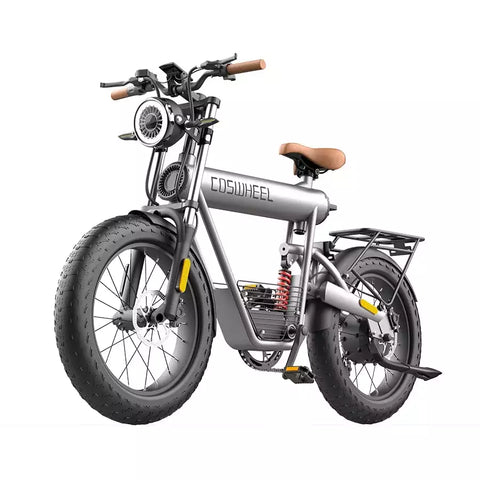

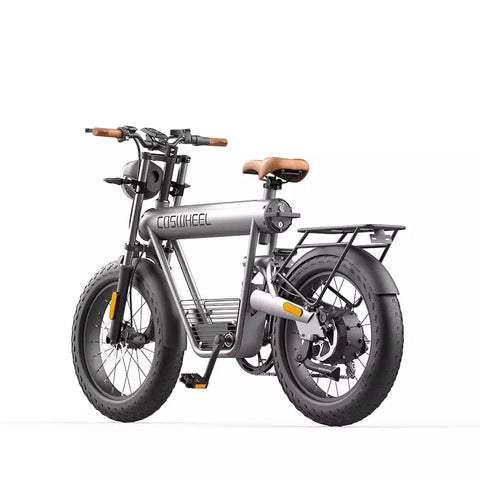

Coswheel T20R Cargo Fat Tire Electric Bike
