FEATURES

SAFETY DESIGN FOR RIDING COMFORTABLY

The Aluminum Alloy frame is light and strong, and the safe load of this ebike is up to 180kg. Hydraulic disc brakes make your riding trip safety, 26 x 4.0 inch fat tires can strengthen friction of the road surface, making driving more stable to suit all road conditions such as snow, road, beach and MTB mountain.The strong high strength Aluminum alloylsuspension fork and 7 Speeds Shift System can give you a comfortable and safety ride.

1000W*48V*17Ah

48V*1000W brushless motor, strong power will add fun to your journey. The MAX-speed of the motor is about 40km/h and the gradeability can reach 35° in common road condition. The motor has a speed limit function (20km/h to 35km/h optional).48V*17Ah Li battery,supports about 1000 times recharge cycle.Battery full charge takes 6-8 hours.

3 WORKING MODES

❶Pedal Assist Mode: The Motor Will Assist You with a Moderate Amount of Power as You Pedal the Bicycle.In this mode you can drive 60-90km before you recharge. ❷Fully Electric Mode: Twist the Throttle in Any Increments of Power You Desire to Power the Motor of the Bicycle.In his mode,it has 40-50km battery range.❸Manual Mode: Pedal the Bicycle Normally as You Would on Any Bicycle.

Fat Tire

MX02S Is Equipped With 26 Inches 4.0 Fat Tire, Which Can Adapt To Snow, city road, Beach And Mountain Rides. The Bike Frame Is Made Of Aluminum Alloy 6601 , Recommended Driver Height: 165 Cm - 200CM, Maximum Weight Support: 180 Kg.

OTHER INFORMATION

It is 95% pre-assembled when you receive it, and great performance with strong spokes.

EU COMPLIANT PRODUCTS

We have EU and US product compliance certificates and reports such as CE\ROHS\EN15194\GCC\UL2849, please rest assured to order. If you need these certificates, please email us after placing your order. Note: Only customers who place an order on our website can request these certificates

What's in the box?

1x Electric Bike Shengmilo MX02S
1x Removable Battery
1x Manual in the English language
1x Free Universal Assembly Tool
Shengmilo MX02S 1000W 48V 17Ah 26'' E-bike 40km/h Max Speed 40-50km Mileage Range 150kg Max Load - Black

DIMENSIONS OF SHENGMILO MX02S

A – Total Length 75in
B – Handlebar Height 43in
C – Wheelbase 46in
D – Minimum Seat Height 32in
E – Maximum Seat Height 38in
F – Chain Stay Length 19in
G – Standover Height 15in
H– Wheel Diameter 29in
I – Head Tube Length 10in
J – Handlebar Length 27in

SPECIFICATION

Brand	SHENGMILO	Model	MX02S
Material	aluminum alloy	Motor	1000W
Product Size	18665105 cm	Battery rate voltage	48V 1000W Brushless Motor
Package Size	1563480 cm	Battery capacity	17 AH
Wheel	26*4.0 inch	Charging time	6-7 h
Product Weight	29 kg	Package weight	34 kg
Max Load	150 kg	Motor rated voltage	48V
Recharge mileage	Pure electric 35-40 km, Power Assitance 40-50 km	Meter screen size and display parameters	LCD instrument
Max speed	40 km/h	Brake	Front and rear XOD disc brakes
Certification	CE	Shift level	7 speed

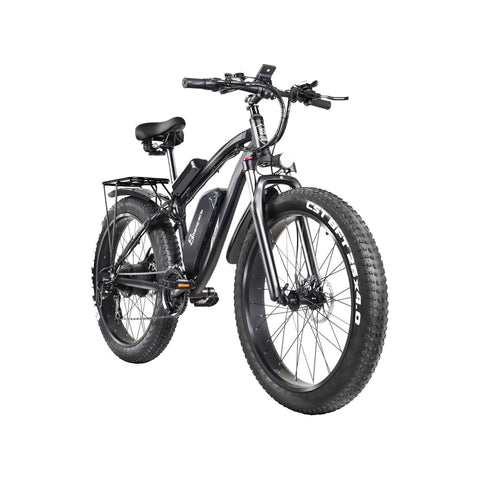

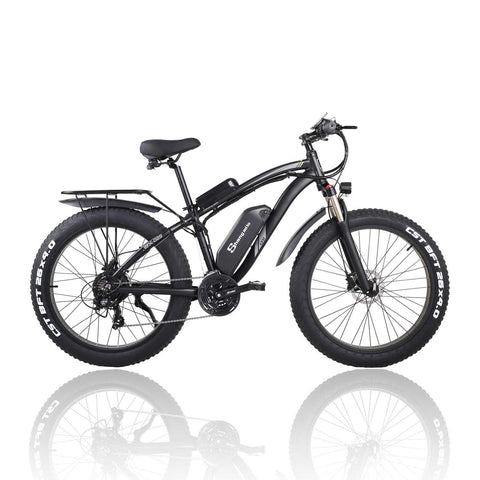

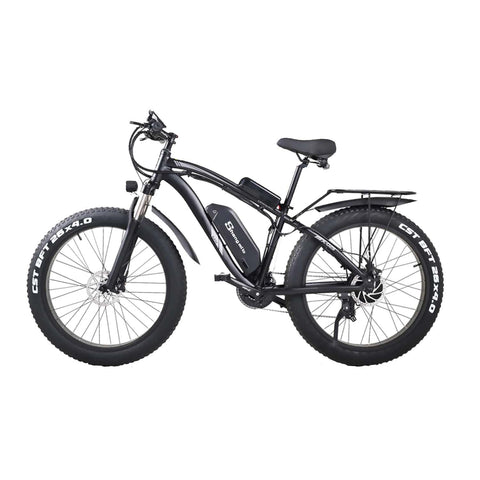

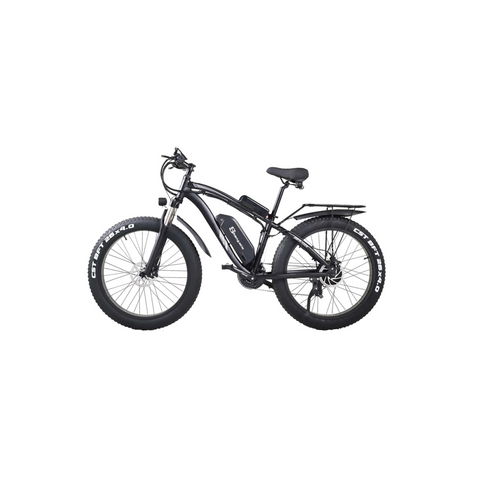

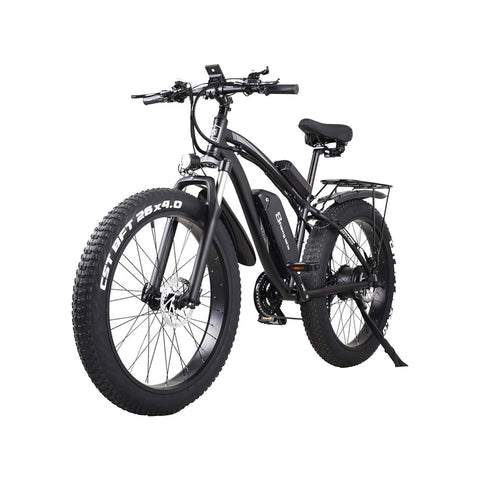

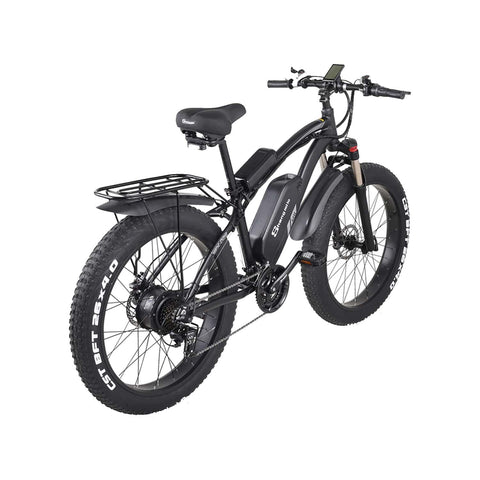

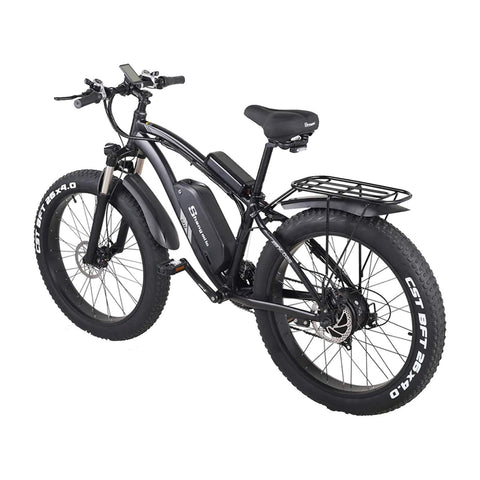

Shengmilo MX02S Electric Bike
