SPECIFICATIONS

Tail light brightness: 50lum + 50lum

Size: 50*40*30mm

Power Supply: Battery

Origin: Mainland China

Mounting Placement: Seatpost

Model Number: Model Number: Q6 bicycle headlight and tail light

Material: PC engineering materials

Headlight brightness: 350lum + 150lum

Fitting position: handlebar/tube seat

Charging time: 2.5 hour / 1.5 hour

Charging port: Type-C

Brand Name: toprider

Battery life: 4-35hour

Battery: headlight: 1100 mAh / taillight: 350mAh

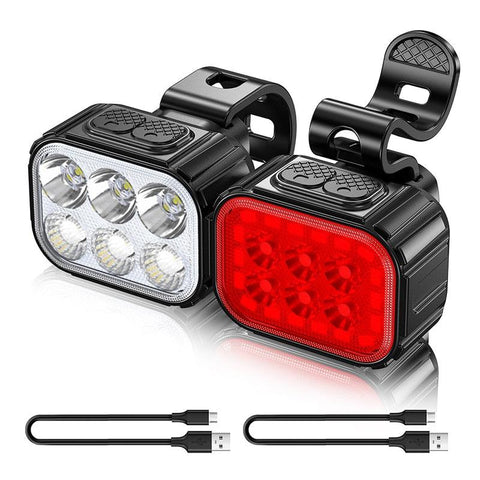

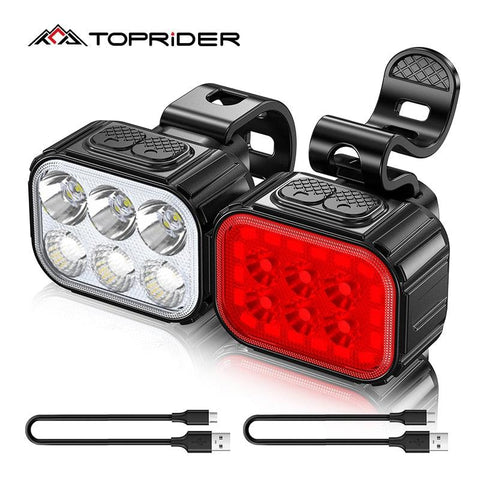

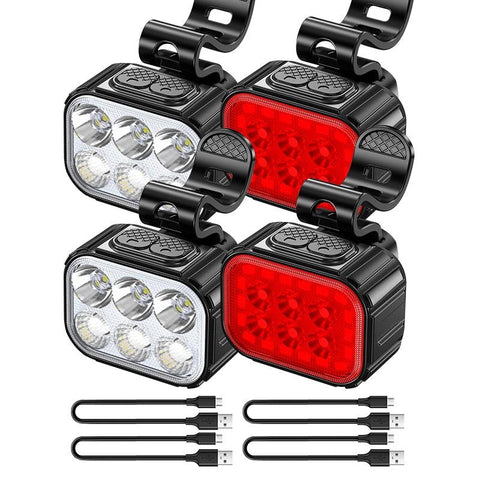

Q6 Bicycle front and rear light group

Lamp beads: Headlight: SZ5-M3*3PCS+2835*3PCS / Taillight: 2835*6PCS+3014*18PCS

Lum: Headlight: 350LM+150LM / Taillight: 50LM+50LM

BatteryLife: 4-35H Battery / 4-33H Battery

Battery: 1100mAh / 350mAh

Charge time: 2.5H full / 1.5H full

Light mode: 8 Modes / 12 Modes

Weight: 45g / 33g

Size: 50*40*30mm

Anti-fall: 3M

Waterproof: IPX65

Package Size: 102*60*35mm

Packing items: Kraft paper box*1 / USB*1 / manual*1 / light*1

Multiple mode collocation

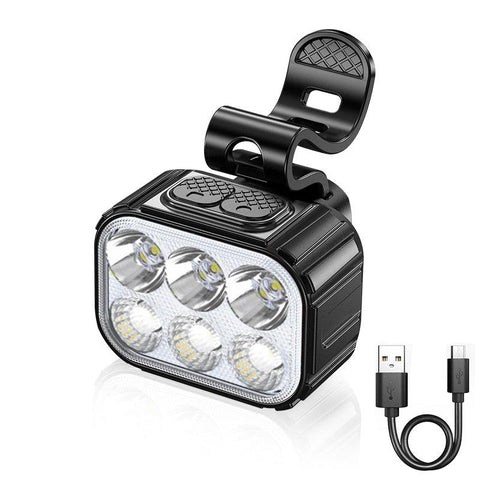

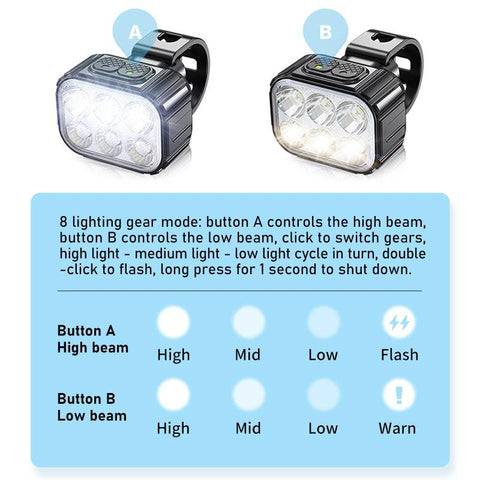

Headlight mode

8 lighting gear mode: button A controls the high beam, button B controls the low beam, click to switch gears, high light - medium light - low light cycle in turn, double-click to flash, long press for 1 second to shut down.

Button A High beam：High light (4H) - Mid light (8H) - Low light (16H) - Flash light (12H)

Button B Low beam：High light (6H) - Mid light (10H) - Low light (23H) - Warn light (35H)

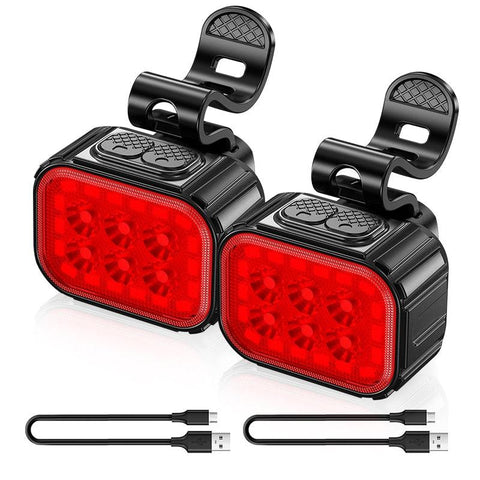

Taillight mode

12 lighting gear mode: button A controls the inner ring, button B controls the outer ring, click to switch gears, high light - medium light - low light - warning - slow flash - fast flash cycle in turn, long press for 1 second to shut down.

Button A High beam：High light (4H) - Mid light (8H) - Low light (16H) - Warn light (33H) - Fast Flash light (15H) - Slow Flash light (15H)

Button B High beam：High light (4H) - Mid light (8H) - Low light (16H) - Warn light (33H) - Fast Flash light (15H) - Slow Flash light (15H)

TYPE-C charging

Overcharge and overdischarge protection,automatic stop when fully charged, durable and not easy to break when plugged in the front and back

When the battery is lower than 20%, the green light flashes; when charging, the green light flashes, and the light stays on when fully charged.

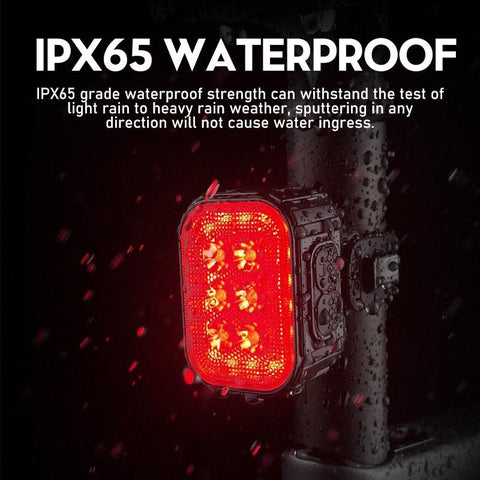

IPX65 waterproof

IPX65 grade waterproof strength can withstand the test of light rain to heavy rain weather, sputtering in any direction will not cause water ingress.

Sturdy/drop-resistant casing

The shell and lampshade are made of PC material. Even if it is subjected to a drop test of 6 sides and 3 meters, the interior will not loosen and maintain normal work. After our strict screening and testing, the product can withstand low temperature -20 ℃; High temperature of 60 ℃It can also be used normally when exposed to harsh environments.

Match the light as you like

The left and right switches are independently controlled and designed to realize a variety of custom lighting modes, making your riding safer.

Left button controls high beam - Right click to control low beam

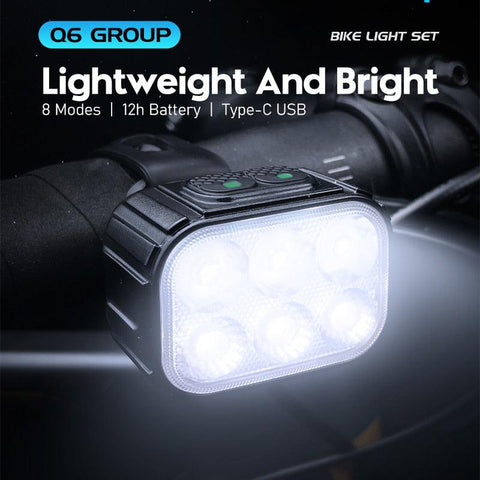

Compact and portable

Lightweight design, bright light, stylish and simple bicycle light

Large capacity battery

Battery life guaranteed

Front light polymer lithium battery 1100mAh, high brightness mode lasts 4 hours

Tail light polymer lithium battery 350mAh, high brightness lasts 4 hours

Product detail

Applicable to Multiple Scenarios

Suitable for many occasions, it is safer to ride and walk at night.

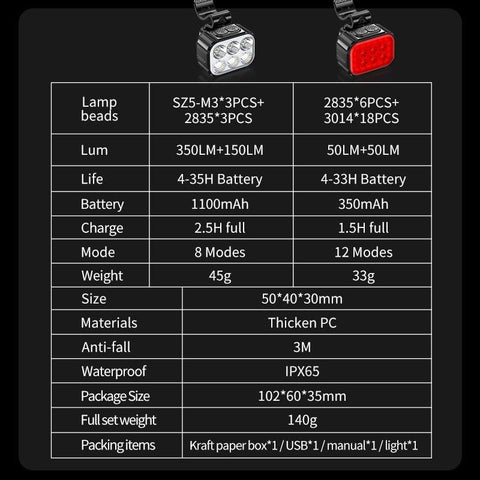

Parameters Table

Installation guide

Use silicone straps to quickly secure bike lights

It can be fixed in two ways, horizontal and vertical, and the direction can be changed by 45 degree rotation.

1. Wrap the silicone strap around to a suitable fixed seatpost position

2. Firmly pull the strap buckle onto the stand

3. The interface on the bottom of the lamp is aligned with the bracket interface, and it can be rotated 45 degrees

4. Installation is complete, start using

Outdoor display
