PRODUCT DETAILS
SPECIFICATIONS
Stopwatch and Accessories: Wireless Stopwatch

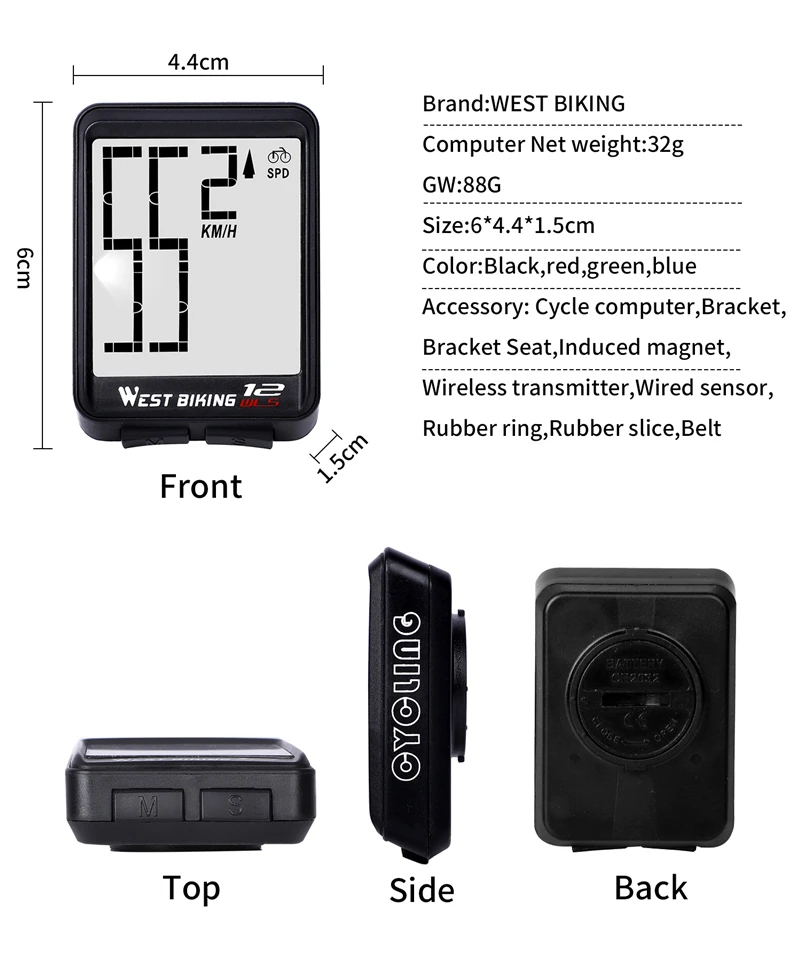

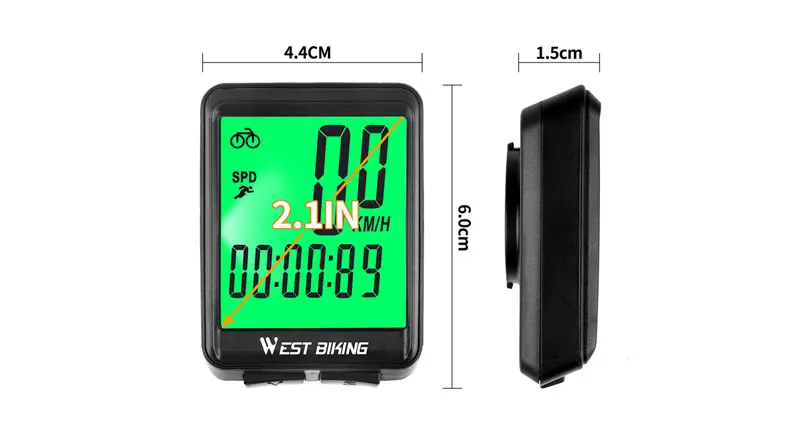

Size: About 75mm * 50mm * 13mm
Power Supply: 2032 Button Cell
Origin: Mainland China
Model Number: YP0702029 / YP0702037 / YP0702038
Fit Position: Bicycle Handlebar
Brand Name: West Biking
Bike Computer Style: Wired and Wireless
Bike Computer Function: 20 Functions, Please See Details

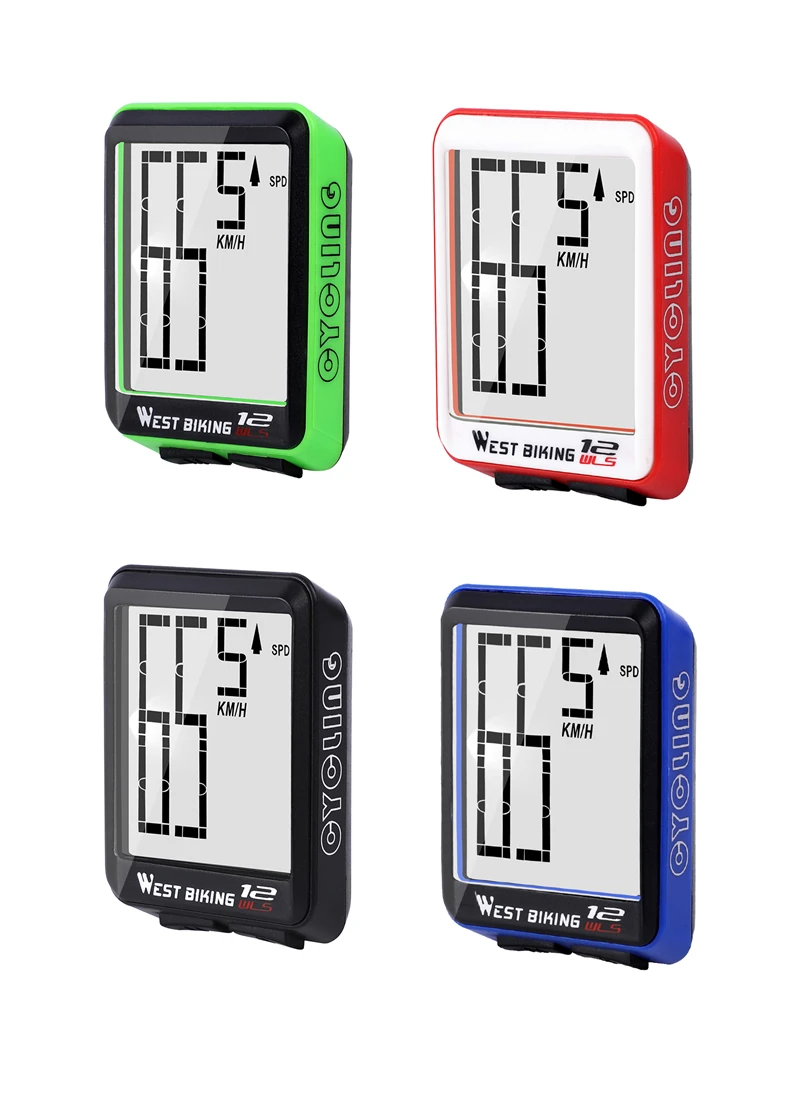

Bike Computer Colors: Black
Bicycle Computer Features: Waterproof, Large Screen, Multi-function, Strong Installation
Application: MTB Road Bike / Fixed Bike

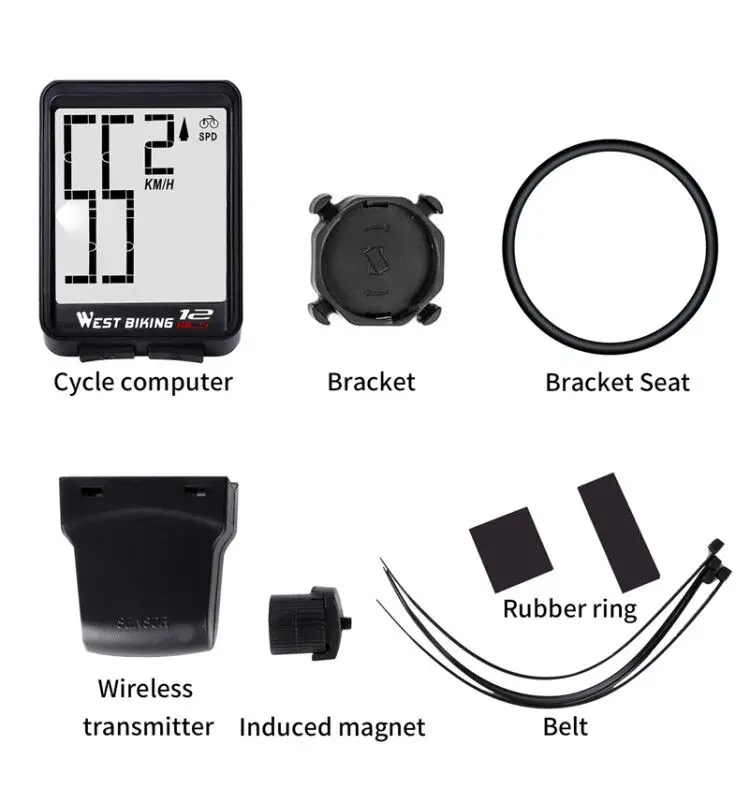

Type A - Wireless Version: Bike Computer, Sensor, Magnet Head, Ties & Stickers, Extension Bracket, Batteries *2, Binding, Box, Manual
Type A - Wired Version: Bike Computer, Magnet Head, Ties & Stickers, Battery, Extension Bracket, Binding, Box, Manual
Type B - Wireless Version: Bike Computer, Sensor, Magnet Head, Ties & Stickers, Invisible Bracket, Batteries *2, Binding, Box, Manual
Type B - Wired Version: Bike Computer, Magnet Head, Ties & Stickers,Battery,Invisible Bracket, Binding, Box, Manual
Invisible Bracket
Instruction
(Mode-Left key, Set-Right key)
(Please tear the screen protective film first, and read step by step)
Computer Installation
Push the computer along the chute, the button stand fix the computer and hold. Removing it just need to pull it out in reverse direction along the chute. Check the installation: Turn the front wheel to run, and look to the screen to confirm if it's got signal. If there has no signal or the reaction is not sensitive please adjust the relative location of Sensor and Magnet slightly.

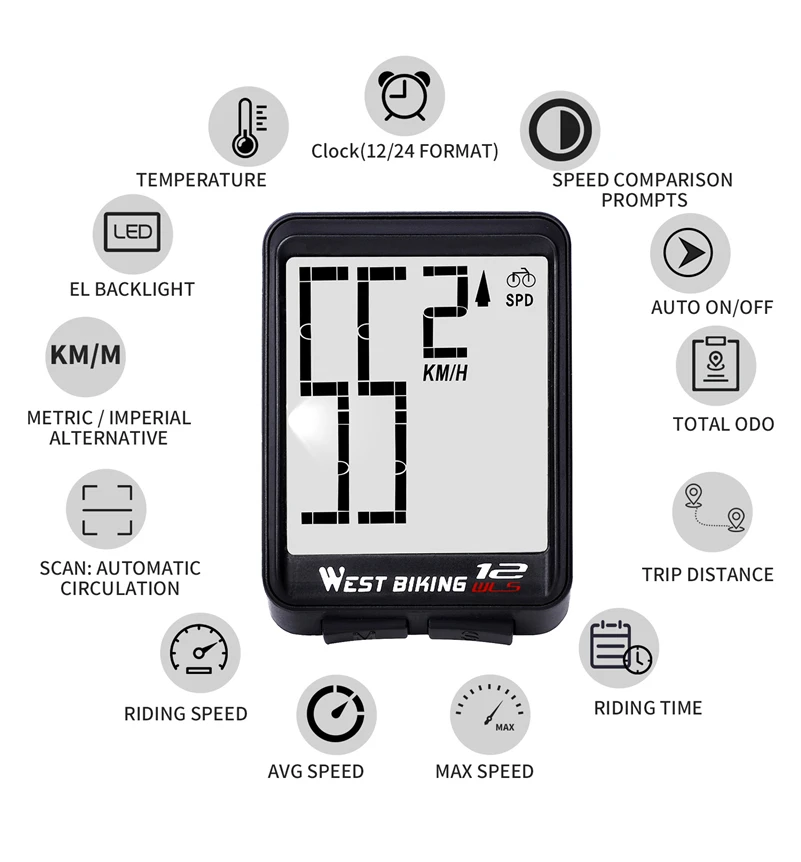

20 Functions
- Memory functions
- Speed tendency (3 km per grip)
- Two bicycle using
- SPD Current speed (0-99.9)
- ODO Odometer
- DST Trip distance
- MXS Max speed
- AVS Average speed
- TM Trip riding time
- CLOCK 12H/24H
- SW Stop watch
- CAL Calories Level
- FAT Fat burn measurement
- TEM Temperature
- Backlight
- Low power indicator
- Maintenance alert
- KM, M selectable
- Setting tyre circumference and ODO
- Auto off
Battery Installation
Remove the battery cover and put a piece of CR2032 battery into the case. Notice: Positive pole (+) should be set upwards. Then cover the the battery cover and screw down.
Pedestal Installation
In the accessories pack there has a strap which can be used to fasten the Seat onto the handlebar, as well we can use the back-up plate to fasten it.

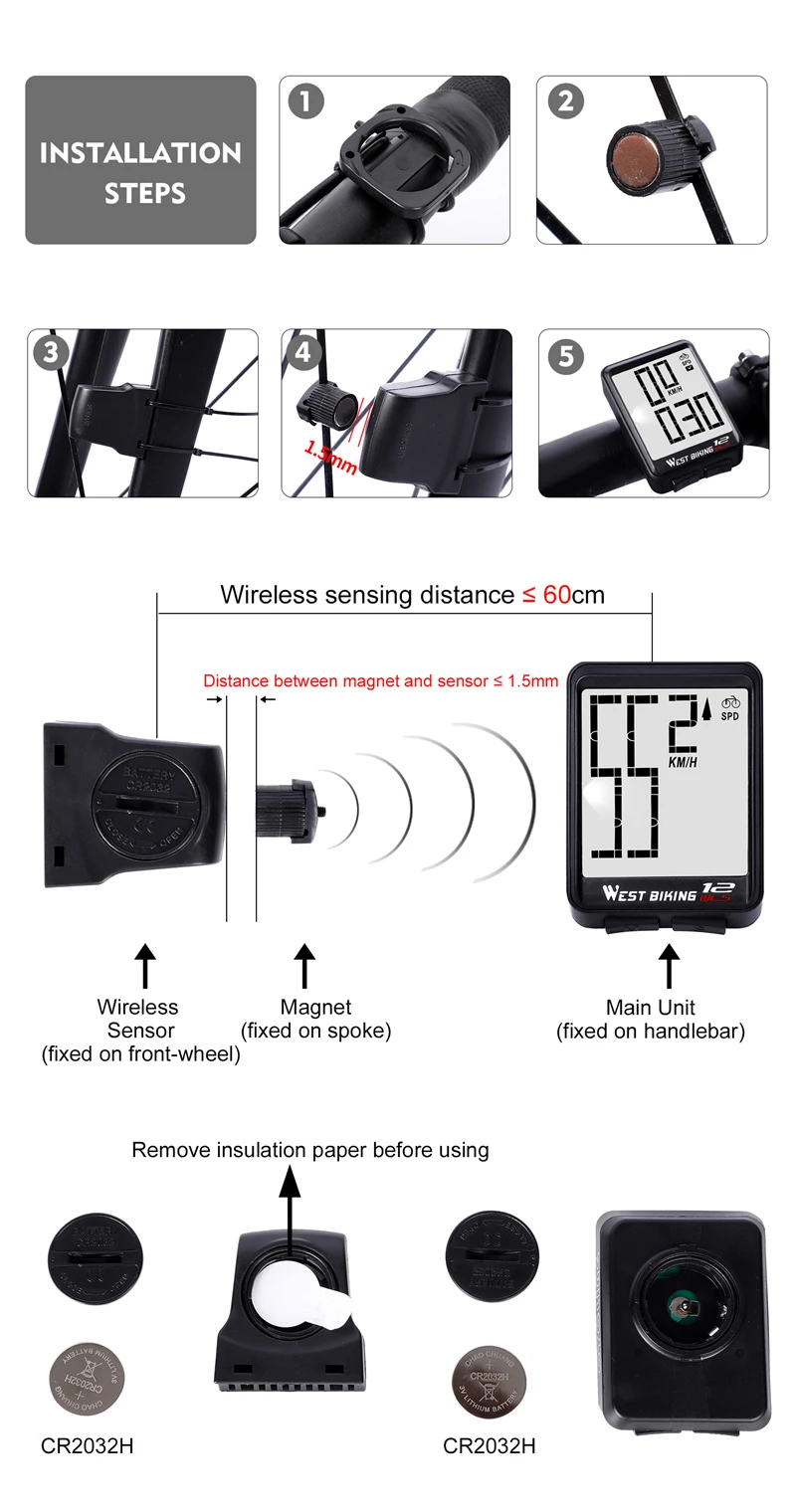

Sensor and MagnetInstallation
Install the sensor onto the front fork of bicycle, and the magnet is installed onto the steel wire at the same side of wheel. Sensor can be underlaid with back-up plate and use the strap to fasten onto the front fork.
It needs to be installed in 60cm distance from the computer, as the picture shows. Adjust the comparative location of Sensor and Magnet. The plane must face to the inductor. Keep the space to be 1.5mm.
Magnet cannot be set to the center of Sensor face-to-face, it's better with the head or tail of Sensor
Wheel Perimeter Setting
Input the circumference from 0 mm to 999 mm. You can also measure it by yourself by the following ways: First make amark on the ground when the nozzle is on the below.
Then make the wheels run once the gas mozzle on the below againplease mark. And measure the distance between the two marks you can get your wheel perimeter.
If the distance is 1615 thenyou should input 1615. (You can also measure the diameter and multiply 3.14 to get the perimeter.)
Setting Steps
1 Put the battery on - Setting KM, M, press SET button to choose and press MODE button to confirm. 1 mile = 1.609 km.
2 Wheel I perimeter setting, the screen shows 2060 (perimeter is 2060 mm). Setting the flashing number from right to left, press SET button to change the number and press MODE button to confirm.
3 Wheel II perimeter setting, the screen shows 1860 ( perimeter is 1860 mm). Setting the flashing number from right to left, press SET button to change the number and press MODE button to confirm.
4 Weight setting. Screen shows K065 and “K” flashing. Firstchoose Kilogram K or Pound L then setting the value. PressSET button to choose and press MODE button to confirm.
5 Bicycle I Maintenance setting, screen shows 0200, setting from right to left. Press SET button to change the flashing number and press MODE button to confirm.
6 Bicycle II Maintenance setting, screen shows 0800, setting from right to left. Press SET button to change the flashing number and press MODE button to confirm.
From now on you have finished the setting, and you can
ride your bike. Default bike is bikeI.If you want to reset
please press left and right key for 6 seconds at the same
time, and the steps are the same with above.
Wheel I perimeter setting,the screen shows 2060(perimeter is 2060 mm). Setting the flashing number from right to left,
ODO, CLOCK and TEM unit Setting
Under ODO - TEM - CLOCK mode, press SET button ODO flashing, press SET button again TEM flashing, press SET button again Clock icon flashing. When ODO flashing, press SET button for 3 seconds to set ODO value. Press the SET button change the number, press MODE button to confirm it, set from right to left number.
When TEM flashing, press SET button for 3 seconds to set the temperature unit. Press SET button to change °/°, press the MODE button to confirm it. When Clock icon flashing, press SET button for 3 seconds to set the date. Press the SET button to change time number, press MODE button to confirm it. Then press SET button to change 12H /24H, press MODE button to confirm it. Press SET button to change time number, press MODE button to confirm it.
DST,AVS, MXS, TM, CAL and FAT clear to zero
Under DST - CAL - TM or DST - FAT - SW mode, press SET button for 5 seconds to clear DST, AVS, MXS, TM, CAL and FAT value to zero.
Backlight
During 17 :00-07 :00, screen will be lighted up for 4 seconds
when you press any key. But if you want the screen always
lighting at any time, press both SET and MODE button for 1
seconds to keep the screen always lighting up. Press SET and
MODE button for 1 seconds again to cancel it .
Stop watch
Under DST - FAT - SW mode, press SET
button to start Stop watch press again to pause,
then press MODE button to clear to zero.
It ranges from 0:00:00 to 9:59:59.
Auto off
After 300 seconds no signal inputs the computer, the screen will turn into OFF state with only clock and date display. It will be restart when you press any button.
Maintenance Alert
Under ODO - TEM - CLOCK mode,when distance value reaches to the maintenance setting value, the spanner icon will be flashing in the screen,press the SET button for 3 seconds to cancel it.
Current speed
Screen will show current speed only when you are riding. Precision is 0.1KM/h. Range at 0~99.9 KM/h (M/h).Screen shows MXS or AVS when you are not riding
Speed tendency
Screen will show a tendency when you are riding. Speed up, it goes high. Speed down, it goes short.
Low power indicator
Once the battery voltage decreases to 2.5 V, the blank battery icon will be flashing on screen, that reminds you to change a new battery.
Two Bicycle I / II using
Under any mode press MODE button for 6 seconds to change to another bicycle mode.
Resetting
Press both MODE and left Button for 6 seconds to reset KM /
M, wheel perimeter/ weight / maintenance.
Memory function
All cycling and setting data will be kept after changinng a battery.
Because of this, the computer haven't cleared to zero before sending to you.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
D Mini Style
Standby / wake-up automatic
Two backlight colors for your choice!
1.Attach the base to the handlebars 2.Fix the monitor to the base 3.Loosely attach the magnet to a spoke 4.Attach the wireless sensor using the wraps 5.Adjust the distance between magnet and sensor to within 3mm 6.Setting date
Distance Between Magnet And Sensor < 3MM Distance < 60CM(Wireless Sensor Fixed On Front Fork)
E Type
